Product Description

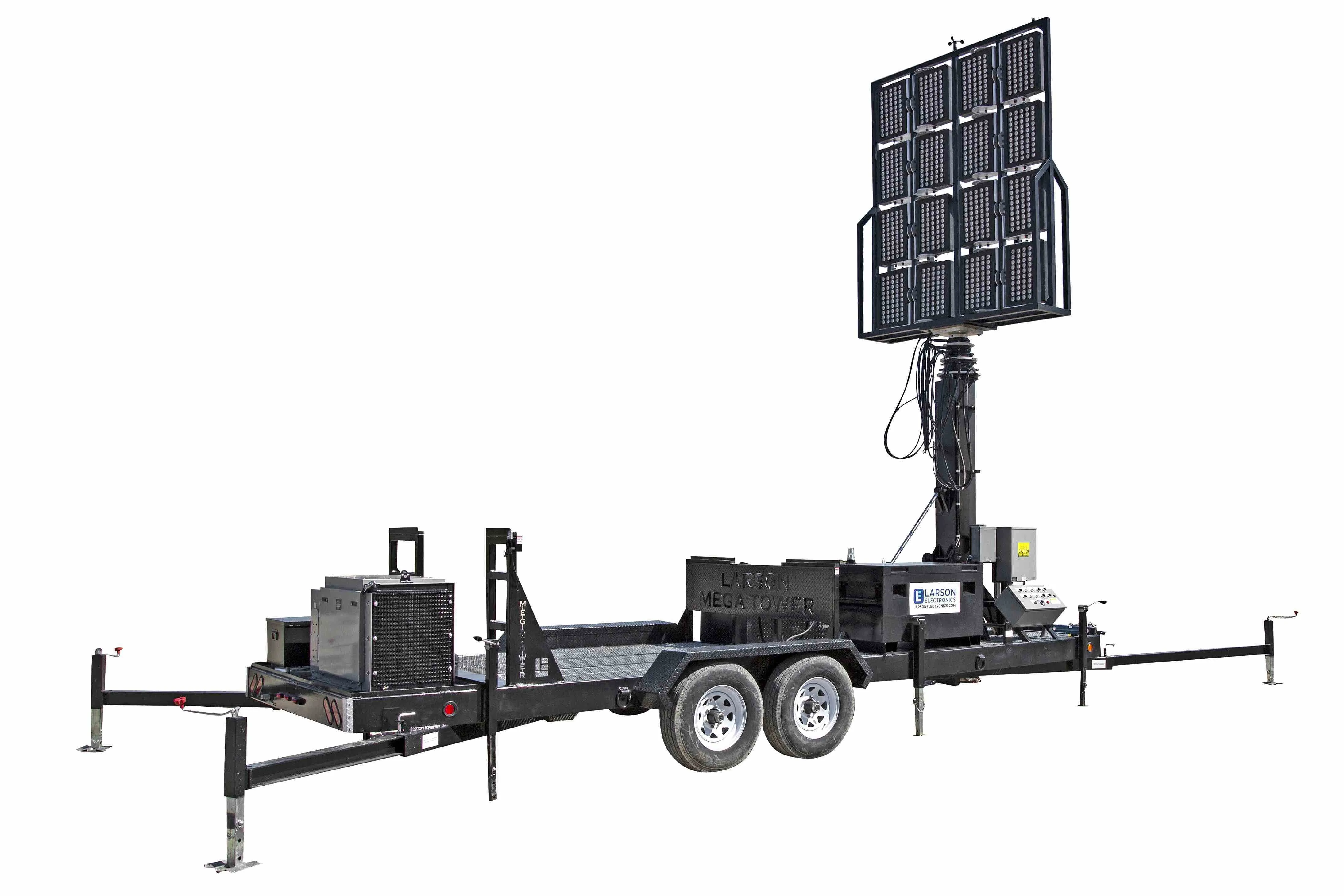

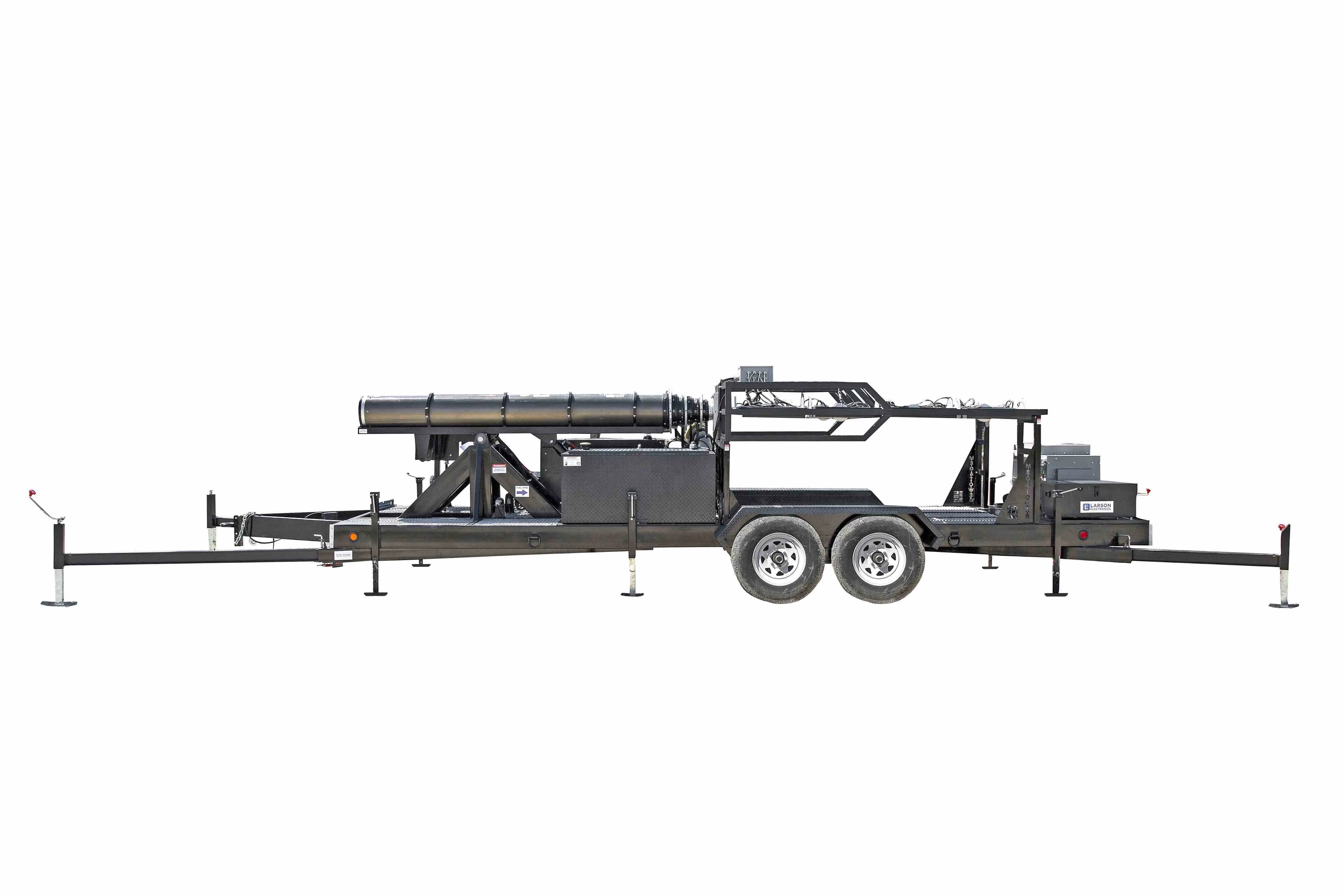

Larson Electronics 50' Pneumatic Megatower™ on 21' Trailer - 11KW Kubota Generator, (16) 500W LED Lights, (4) PTZ Cameras, 2TB NVR, 4G Router
Description

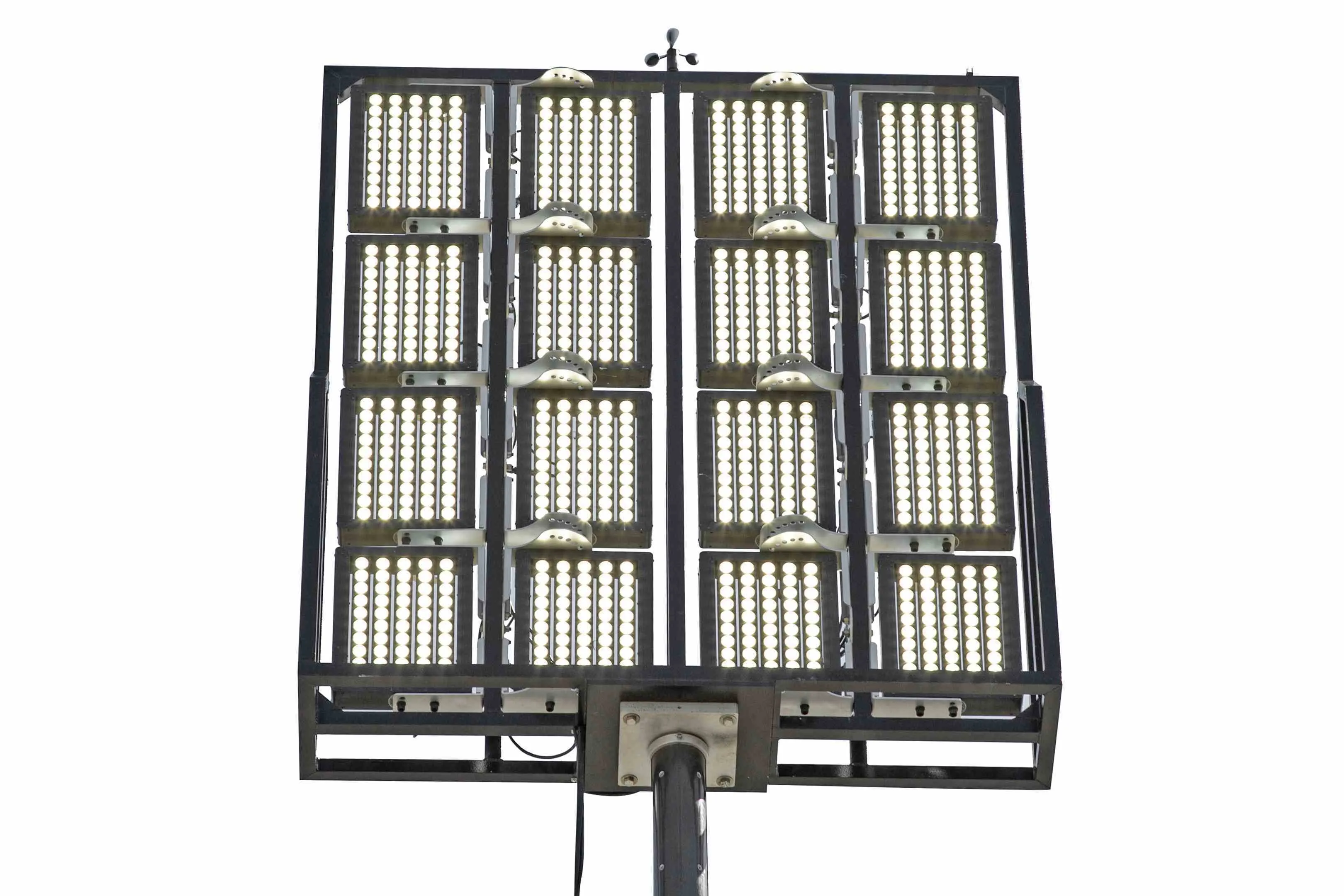

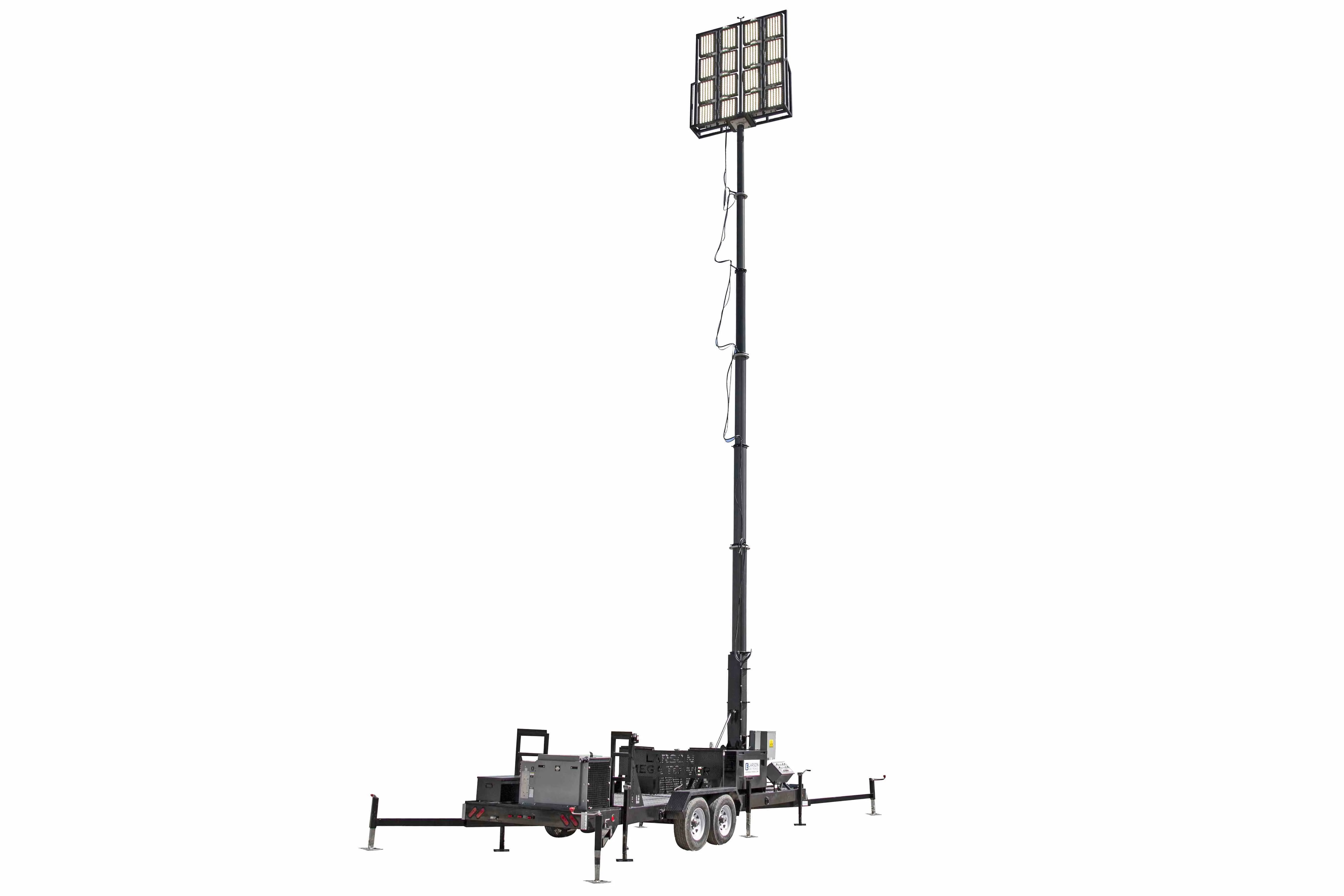

The WCDE-11-PLM50-16X500LTL-LED-4XPTZ-2TB-W4G Megatower™ by Larson Electronics is a powerful, towable light tower designed for large-scale event lighting, construction, and security applications. This unit combines high-intensity lighting with integrated surveillance, offering sixteen 500-watt LED fixtures producing a total of 960,000 lumens. The seven-stage pneumatic mast reaches up to 58 feet, ensuring broad area coverage for any worksite.
The Megatower™ is equipped with four high-resolution, 2MP PTZ cameras for real-time monitoring. Video data is stored on a 2TB network video recorder with multiple recording modes, including continuous, motion detection, and event. A robust router with 4G LTE capabilities provides network connectivity, supporting up to 60 users, with dual SIM slots for load balancing.
Built with a Kubota GL11000TM 11KW generator, this Megatower™ delivers reliable power for lighting, cameras, and networking systems, allowing for uninterrupted operation up to 43 hours on a single fuel tank. Constructed with durability in mind, the LED lights are IP67 rated and designed to withstand temperatures from -40°C to 80°C, while the trailer is made from industrial-grade steel with a corrosion-resistant paint finish. Additional features like auto-retract in high winds and cold weather adaptations ensure resilience in extreme conditions.
Key Features
- Illumination & Surveillance: High-output LED lights combined with PTZ camera security system.
- Long Runtime: Operates continuously for 43 hours without refueling.
- Cold Weather Adaptations: De-icing system and heated battery for low-temperature performance.
- Heavy-Duty Trailer: Built with steel construction and industrial-grade Dupont™ paint for rust protection.
- Advanced NVR Capabilities: 2TB NVR with multiple recording modes, remote access, and video analytics.
Detailed Specifications
| Specification | Details |
|---|---|

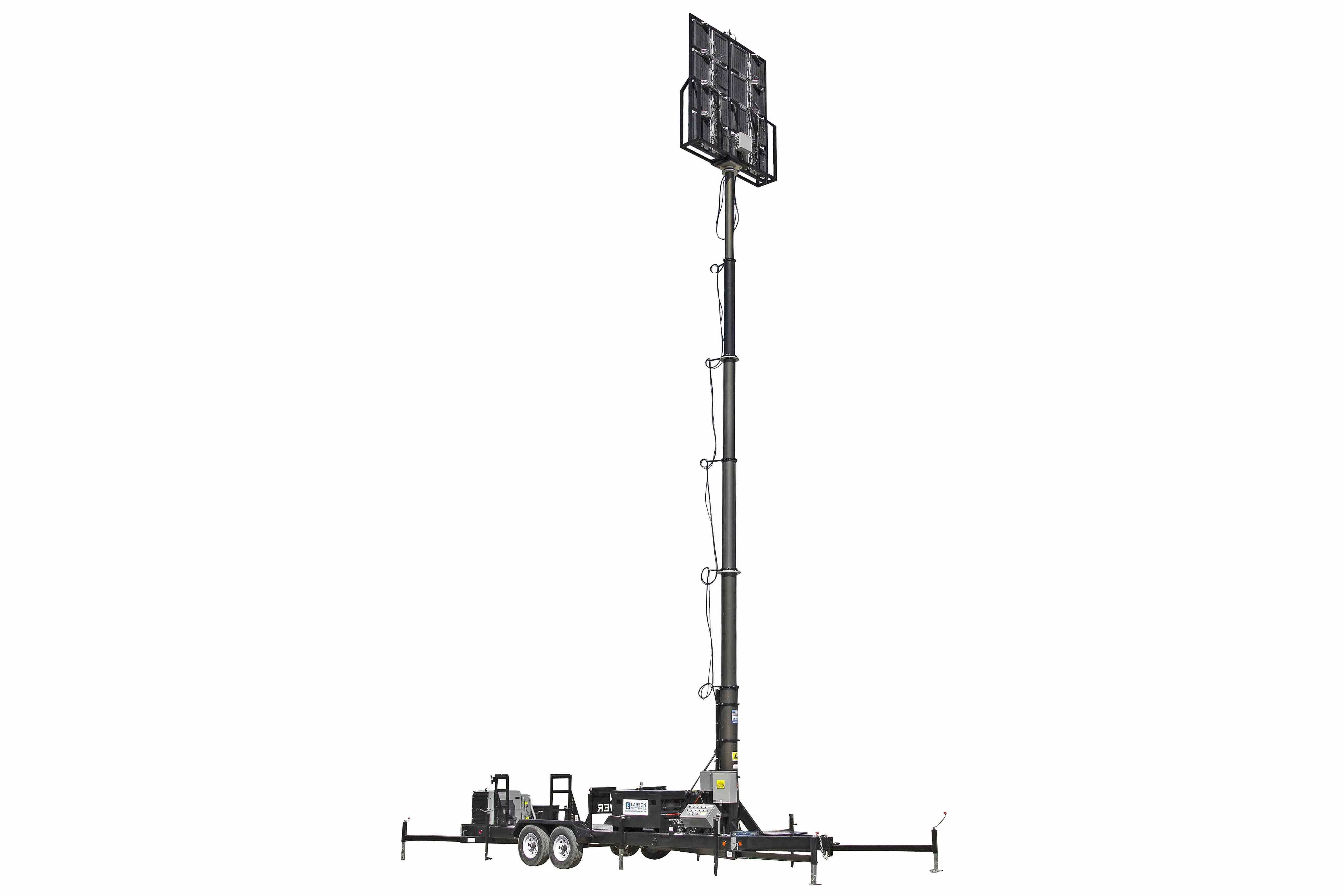

| Mast Height | 13.5' to 58' |
| LED Light Output | 960,000 Lumens (60,000 per lamp) |
| Camera Resolution | 2MP PTZ Cameras |
| Network Storage | 2TB NVR, 4 channels, H.265/H.264 compression |
| Generator | 11KW Kubota, 110-gallon fuel tank |
| Operating Voltage | 120/240V single-phase |
| Cold Weather Package | De-icing and heated battery blanket |

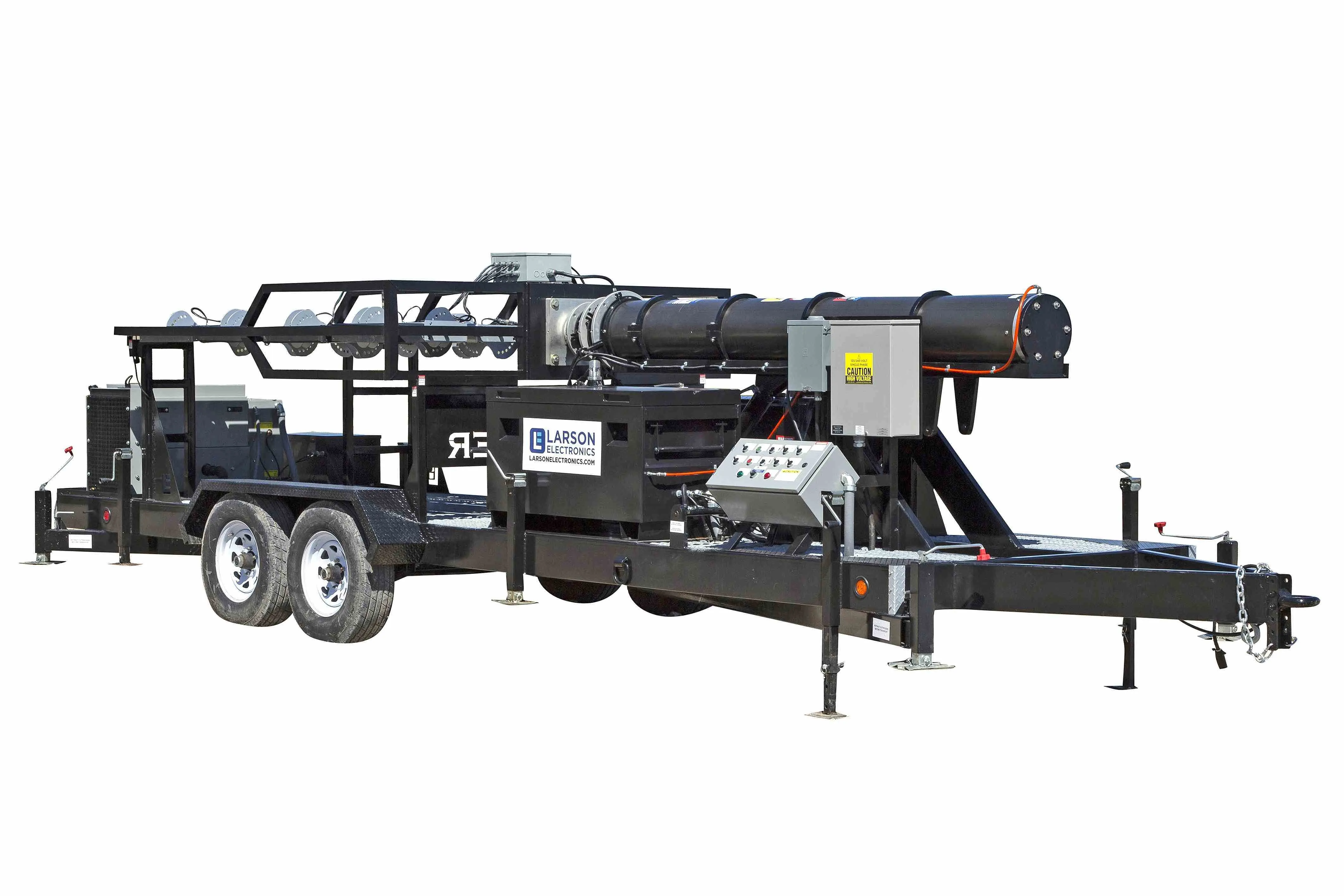

| Trailer Dimensions | 21' L x 6.5' W, height under 13' with lights |
| Wind Resistance | 35 mph extended; 95 mph collapsed to 22' |
Suggested Applications:
- Construction site lighting and surveillance
- Large event illumination and security
- Industrial operations requiring extended lighting and monitoring
- Emergency response and temporary security deployment
Package Includes:
- WCDE-11-PLM50-16X500LTL-LED-4XPTZ-2TB-W4G Megatower™ Trailer
- (16) 500W LED Light Fixtures
- (4) PTZ Outdoor Cameras
- 2TB Network Video Recorder with Recording Modes

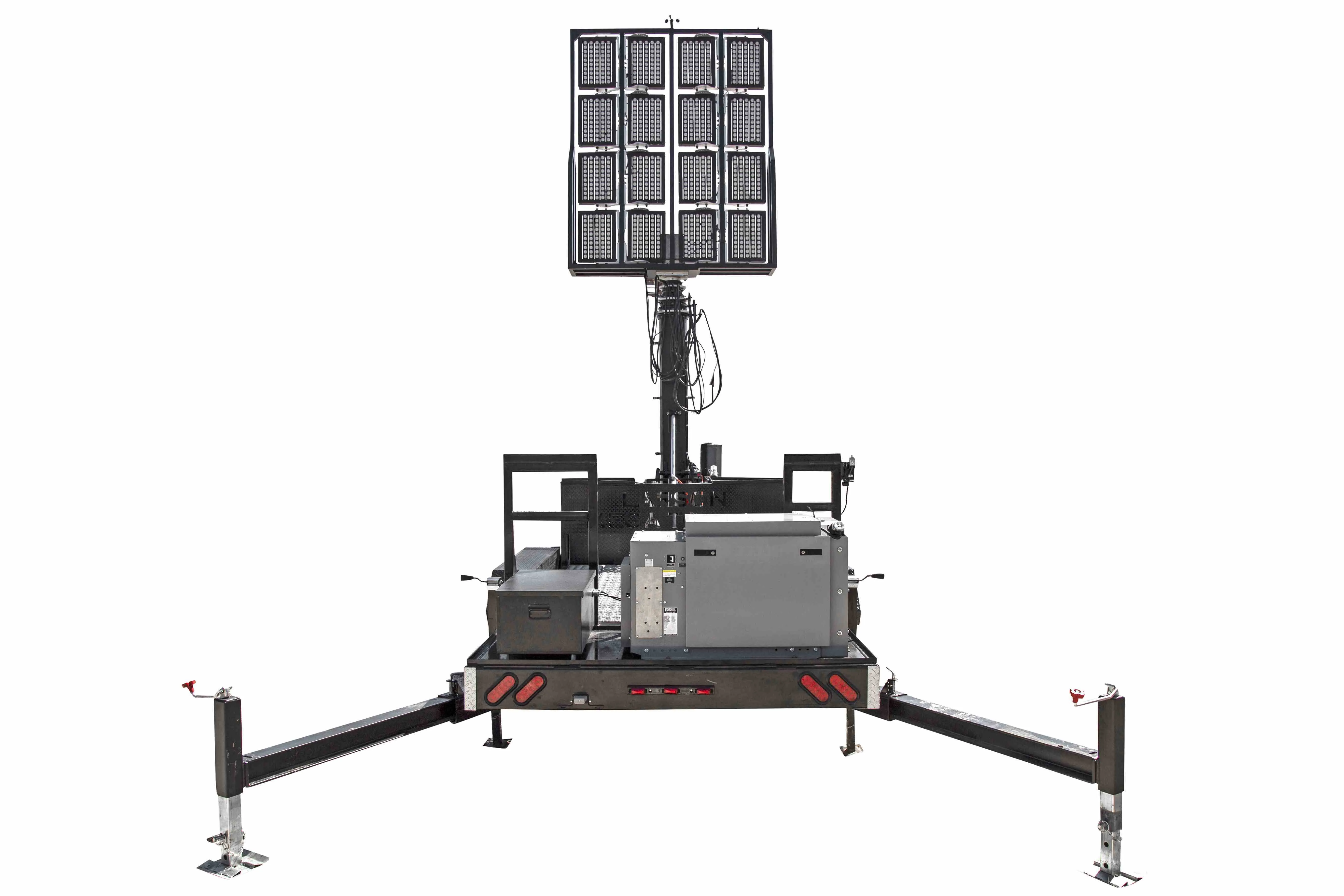

- Heavy-Duty 21' Trailer with 4-Point Outrigger System
Important Notes:
This unit is customized for industrial-grade durability and performance. Images are for reference; configurations may vary. Please review specifications carefully.
Available Documentation:
CAD files, Dimensional Drawings, Wiring Diagrams
