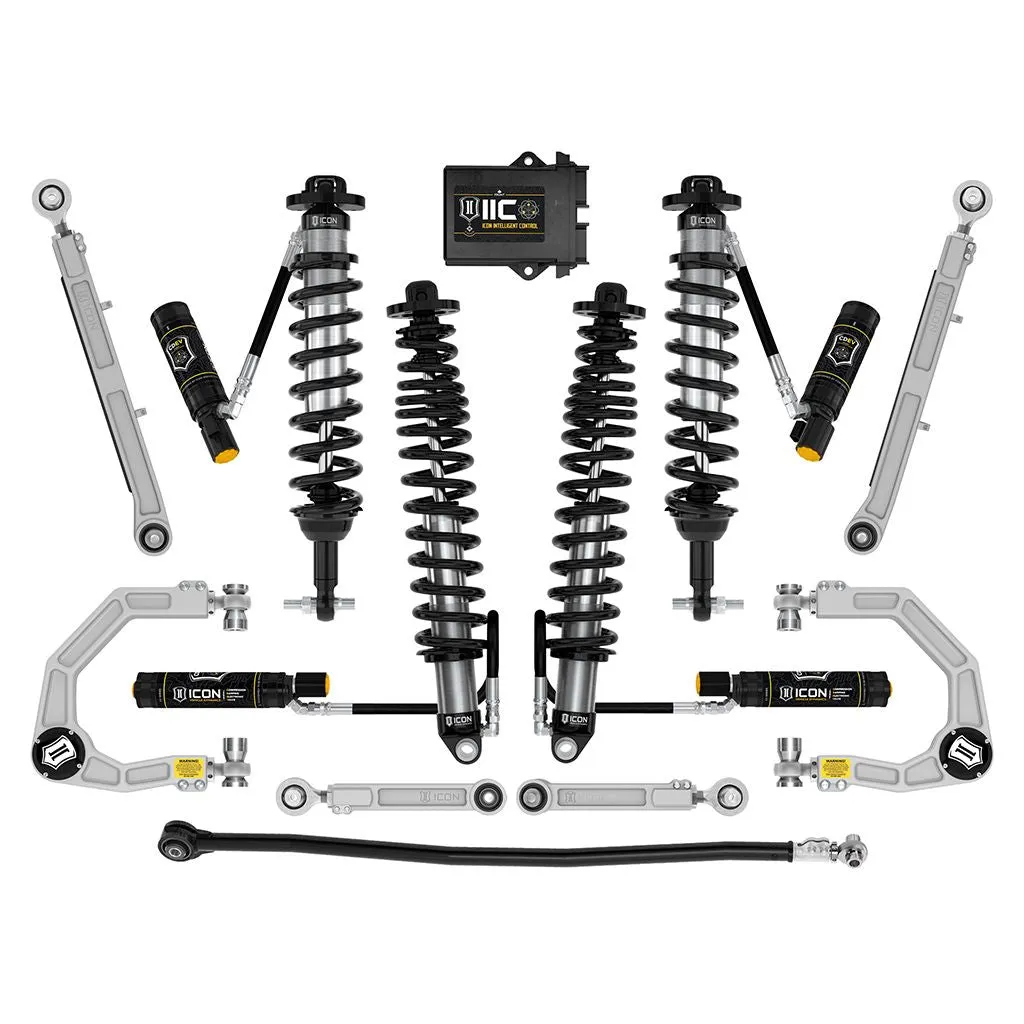

- Improved suspension performance and ride quality over stock
- Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
- Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
- ICON engineered coil springs featuring a unique triple rate rear coil design
- High strength alloy CNC machined lower bar pins
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
- Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
Attributes:
- GTIN: 00840103416311
- Brand Name: ICON Vehicle Dynamics
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- 2371: Yes
- 5782: Square
- 5783: Square
- 7325: 2
- 7326: 2
- Front Spring Rate Type: Linear
- 3390: Performance
- 5520: 3
- 30: Yes
- OEM Wheels & Tires Fitment: Yes
- Rear Spring Rate Type: Progressive Triple Rate
- Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” BS / 0mm Offset
- 3097: Yes
- 3096: Black
- 2064: Steel
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: x x inches
- Weight: 0 lb
